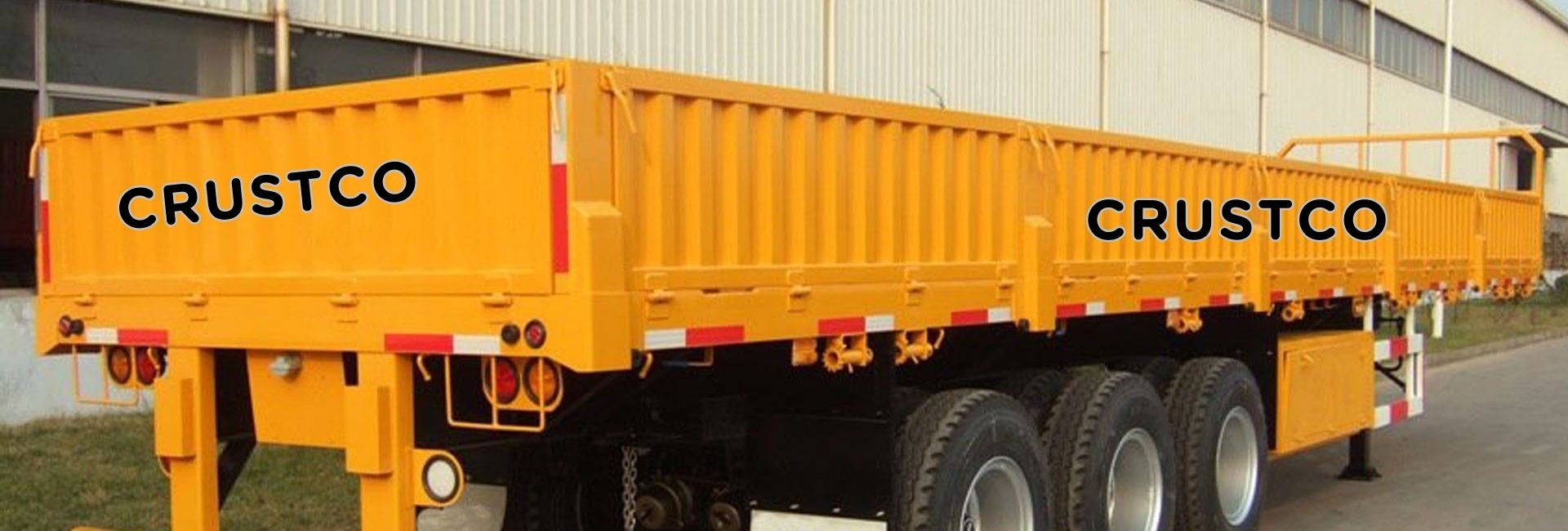

Side Wall Trailer
Side Wall Trailer
Our Side Wall Trailers are crafted to securely transport heavy and oversized loads while offering added protection and stability. With robust side walls, these trailers are ideal for carrying loose goods, pallets, and cargo that require extra support during transit.
Chassis
- Al steel welded construction
- 2 parallel flange beams of ST 52 or equivalent grade steel running along full length of the trailer
- Cross members- rolled or folded positioned at suitable locations
- Fixed front and side panel, drop down rear door
- 1 window provided at the centre on both sides
King Pin
- 2" king pin equivalent
Brakes
- Twin line air brake system coupled to prime mover brake system
- Trailer brakes are actuated from the prime mover
- T24 brake chamber provided on all axles
- Manually actuated parking brake,
- QRV or LORV provided for enhanced braking efficiency
Axle
- 3 axles provided
Landingeg
- Two speed landing leg
Suspension
- Tridem axle leaf spring suspension with load equalizing brackets
